LMX
Mobile laser cleaning

Available from 100 to 300 watts

MOBILE LASER CLEANING OF THE FUTURE

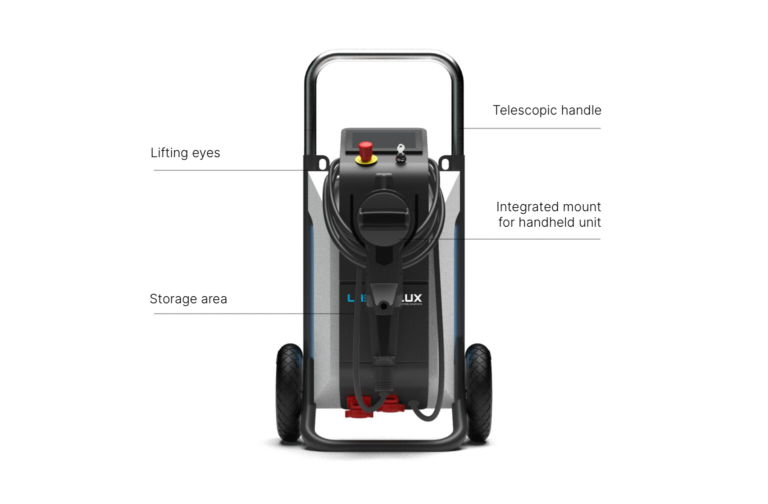

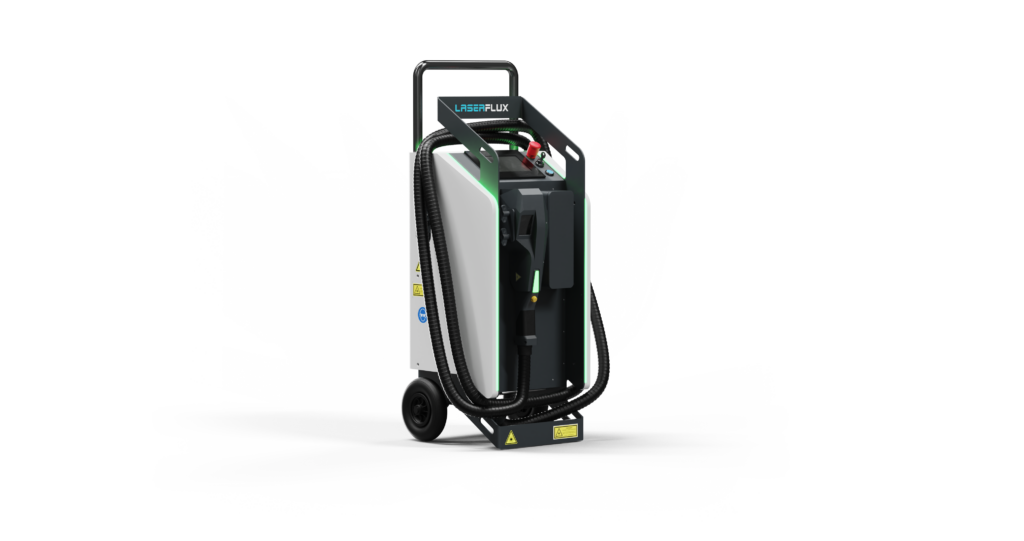

Laserflux’s mobile laser cleaning devices are equipped with everything you could expect from a state of the art machine. It comes standard with an integrated water cooling system that allows you to clean for up to four hours at a time. This can be expanded with extra cooling if necessary.

The standard gun hose length is 8 meters and can be completely stored in the mobile unit. So no messy hoses on the outside.

There is also the necessary storage space for the electrical power cables, the laser gun and small items such as safety glasses, spare cover slips, etc. Speaking of glasses: One pair of laser glasses is supplied as standard with the machine, but you can order as many as you need.

The machine is electrically connected to a standard 230V socket. The necessary power cables are provided for this. The machine is operated via an 8″ touch panel that is very easy to use and on which the Laserflux software runs. Large icons, intuitive operation and many useful pre-programmed functions. Ideal to get started right away without a long training!

A central braking system and a handy compressed air gun to blow away dust and residues complete the picture.

LASER GUN

The Laserflux laser gun is an example of top engineering. The pistol weighs only 2 kilograms and is therefore the lightest on the market.

The compact design makes the gun easy to maneuver to reach the tightest corners.

The distance between the lens and the focus area is easy to adjust so that the most practical approach can always be used.

TECHNICAL SPECIFICATIONS

Because the basic unit is the same for every version, upgrades are always possible.

Base Unit

	LMX100	LMX500	LMX300	Unit
Dimensions (L x W x H)	900 x 400 x 500	900 x 400 x 500	900 x 400 x 500	mm
Free height bottom	100	100	100	mm
Weight	30	40	40	kg
Colour	White / SS	White / SS	White / SS
Cover material	Stainless Steel	Stainless Steel	Stainless Steel
Cover thickness	1,5	1,5	1,5	mm
Laser power	100	200	300	W
Max pulsepower	0,3	0,5	0,5	MW
Cooling power	Unlimited	Unlimited	Unlimited
Cooling autonomy (standard cooling)	Unlimited	Unlimited	Unlimited
Cooling autonomy (extra cooling)	Unlimited	Unlimited	Unlimited
Screen	8″ touch panel	8″ touch panel	8″ touch panel	inch
Pistol cable length	5	5	5	m
Maximum pistol cable length (not integrated)	8	8	8	m
Electrical cables length	25	25	25	m
Power supply	3 x 400	3 x 400	3 x 400	V
Power connector	16 / 32	16 / 32	16 / 32	A
Central braking system	Unlimited	Unlimited	Unlimited

Laser Pistol

	LMX100	LMX500	LMX300	Unit
Dimensions (W x L x H)	120 x 480 x 120	121 x 480 x 120	122 x 480 x 120	mm
Weight	2	2	2	kg
Voltage	24	24	24	V
Material	N/A	N/A	N/A
Colour	White / Black	White / Black	White / Black
Handle rotation	Unlimited	Unlimited	Unlimited	°
Focus distance	150 – 250 – 300 – 360	150 – 250 – 300 – 360	150 – 250 – 300 – 360	mm
Integrated leds	Yes	Yes	Yes

Laser Parameters

	LMX100	LMX500	LMX300	Unit
Average power	100	200	300	W
Puls duration	1-100	20-500	20-500	nS
Puls frequency min	2	2	2	kHz
Puls frequency max	500	4000	4000	kHz
Peak power	0,3	0,5	0,5	MW

LMX Mobile laser cleaning
